Synaptics AS6303 46Vpp Boosted Piezo Speaker Amplifier

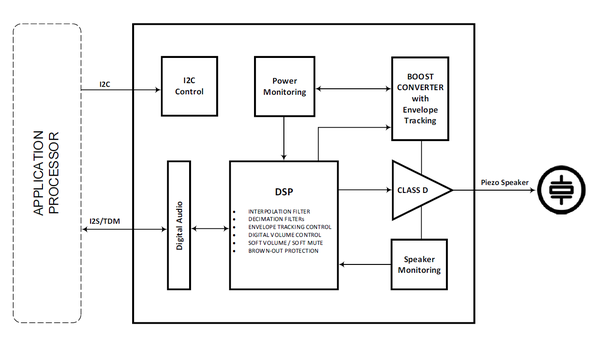

The AS6303 is a high-performance amplifier designed to drive capacitive loads of up to 10 μF, such as piezo transducers. It integrates a 25 V boost converter, enabling Class H operation through an envelope-tracking architecture. The fine-grained booster, combined with advanced power flow management, minimizes current peaks in and out of the input supply for smooth system integration into portable devices.
The boost converter input supply is 10 V capable, allowing the AS6303 to be powered by 1-cell or 2-cell battery systems. The boost converter can be bypassed if desired, using an external voltage supply of up to 25 V.
The AS6303’s high-performance digital Class D amplifier is able to drive capacitive loads of up to 10 μF with an output voltage of up to 16Vrms, 46Vpp with advanced anti-pop protection and wide dynamic range. The AS6303 gain structure allows it to support both receiver and speaker modes, with extremely low idle channel noise. Its TDM / I2S-compliant digital interface simplifies connectivity to any host processor. Battery voltage, output load voltage, output load current, and feedback digital reference (post DSP) are converted into digital words and output via the TDM / I2S interface to the host processor for advanced control algorithms.
Applications
- Mobile and smartphones
- Tablets and laptops
- Smartwatch
- Smart home displays
- Portable gaming systems
- Automotive
FEATURES
High Efficiency Envelope Tracking 25 V Boost Converter
- Supports Wi-Fi 2.4/5 GHz with best CMOS RF, including integrated power amplifiers (PAs) and low-noise amplifiers (LNAs) (external PA and LNA optional) with highest transmit (Tx) power level and receive (Rx) sensitivity.
- IEEE 802.11ac compliant with legacy support for 802.11a/b/g/n.
- Supports real-time simultaneous dual-band (RSDB) operation at 2.4 and 5 GHz.
- 20/40/80 MHz channels for the main (Main) 2x2 Wi-Fi core, and 20 MHz channels for the auxiliary (Aux) 2x2 Wi-Fi core.
- 2x2 Wi-Fi antenna array.
- Supports three antennas with two dedicated to Wi-Fi and one dedicated to Bluetooth.
- Integrated Bluetooth 5.2 with support for Bluetooth Low Energy (BLE).
- Synaptics Smart Co-Ex for best-in-class coexistence of Wi-Fi and Bluetooth radios in the 2.4 GHz band.
High Performance Digital Class-D Amplifier
- Can drive capacitive loads of up to 10 μF
- Capable of driving dynamic speakers
- Ultra-low noise floor
- Wide dynamic range
- Output voltage up to 46 Vpp
- Anti-pop noise power up / down
Integrated Sensing for Advanced DSP Control
- Speaker load voltage/current, temperature/battery
- Sound pressure level (SPL) maximizer and impedance-tracking algorithms
- Digital audio feedback for echo cancellation
Advanced DSP
- Soft start / soft mute
- Smart auto-mute feature
- Supports TDM interface
- Tone generator
Host Processor Interface
- I2C interface
- One dedicated interrupt line
- TDM / I2S digital serial interface
Safety Features
- Short-circuit protection
- Over-temperature protection
- Battery-rail reactive brownout system protection
- Speaker current sensing and protection
Advantages Over Traditional Amp
- Extreme power reduction
- Force sensing (gaming, button press)
- Haptic + ultrasound pattern generator
